Drylining beads

PVCu beads for drylining / drywall applications


Renderplas PVCu drylining beads offer the perfect solution for skim plastering and drywall applications. Because they are made locally from cost-effective recycled PVCu, they offer a value for money alternative to metal products. They are guaranteed not to stain during a lengthy drying out process or in situations with high moisture or salt such as kitchens, bathrooms and pool enclosures. They are particularly well suited to schools, prisons and hospitals as they do not provide any threat to safety either after a heavy impact or if pulled out of the wall.

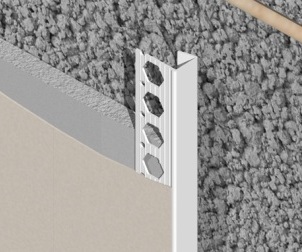

Application:  Corner beads provide a clean edge and impact protection on external corners. Arch beads create smooth curves in arched reveals. Edge beads provide a clean attractive stop to plasterboard where it meets another finish, such as a brick wall or door frame, and prevent cracking. Architrave beads provide a shadow gap between the wall and ceilings, skirting boards and door frames.

Colours:  Stocked in white in all profiles.

Performance:  Like all Renderplas products, the drylining range is manufactured from exterior grade, impact resistant, UV stable unplasticised PVCu. They offer several benefits over metal beads whilst still giving excellent protection from impact and providing clean edges that often do not need painting. PVCu beads are guaranteed never to rust and they will not stain like metal beads can do in lengthy drying periods. They are the perfect choice in situations with high moisture or salt such as kitchens, bathrooms and pool enclosures, but are equally suited to all general plasterboard applications.

Health and safety:  PVCu beads are completely safe to handle during application and do not have the razor sharp edges of cut metal. They are also preferred in schools, hospitals and prisons as they do not provide any threat to safety either after a heavy impact or if pulled out of the wall.

Storage, cutting and fixing:  Store vertically away from heat and direct sun, or flat if supported along entire length. PVCu beads are fast and easy to cut to length with tin snips or a fine toothed hacksaw. They are simply fixed with nails or staples through the wing of the bead.

Packing:  Supplied in 2.5m or 3.0m lengths in high quality fibreboard tubes or boxes in 6, 25 or 50 lengths per pack as shown in the table below.


Code Product
Description
Render or
Plaster
Depth
(mm)
Weight per Pack
(kg)
Lengths per Pack Colours Datasheet

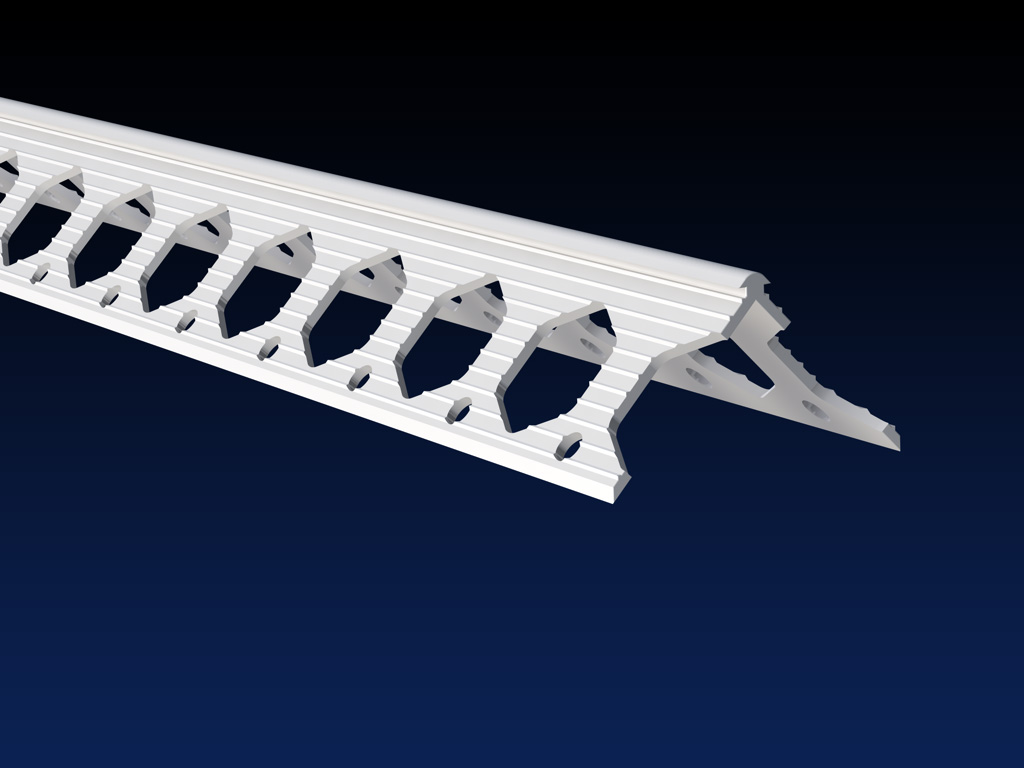

CB2 2mm PVCu skim corner bead 2-3 4.38 25 White View»

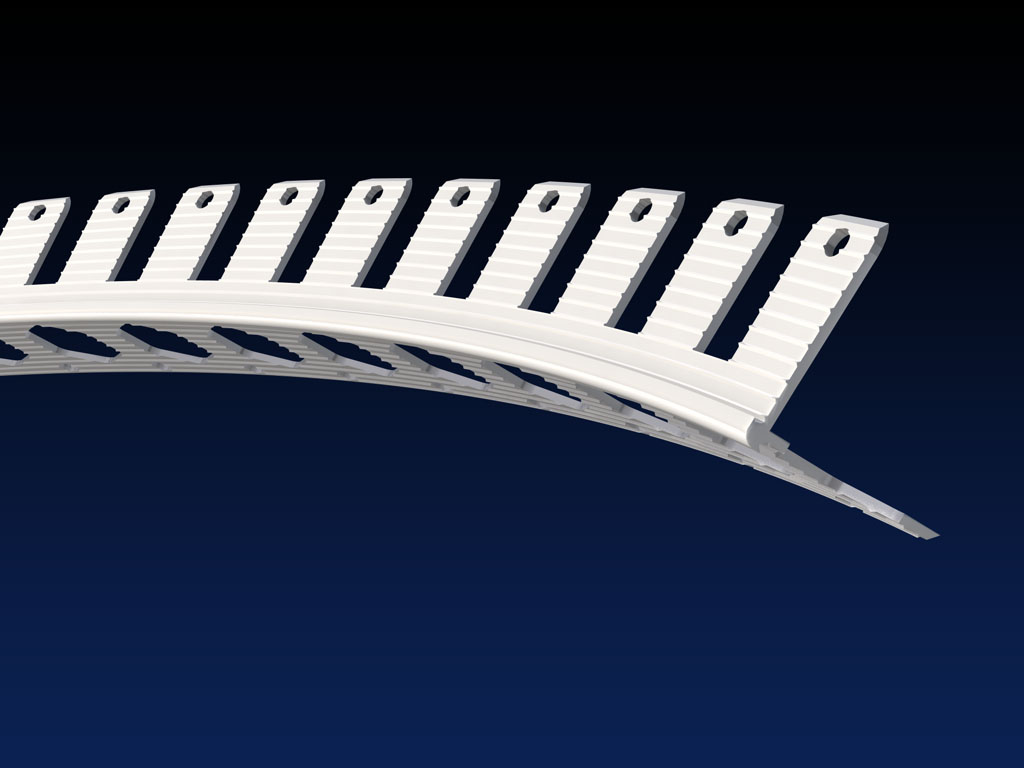

CB2A PVCu skim arch bead 2-3 4.38 25 White View»

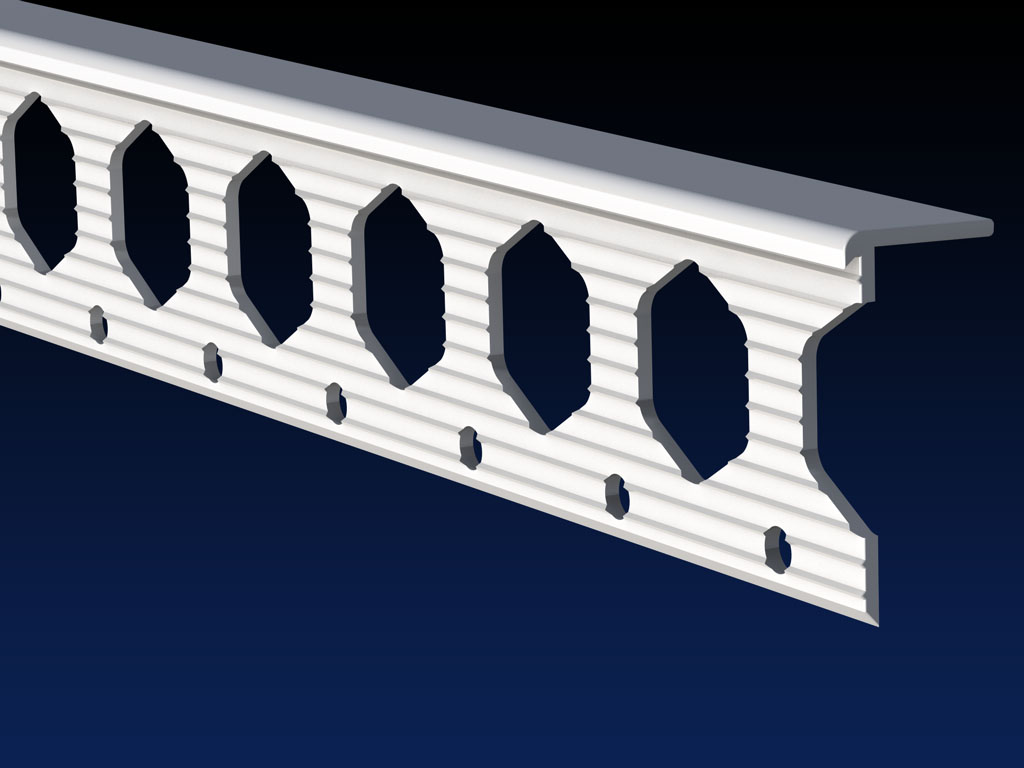

EB0 PVCu flexible board edge bead 2 3.44 25 White View»

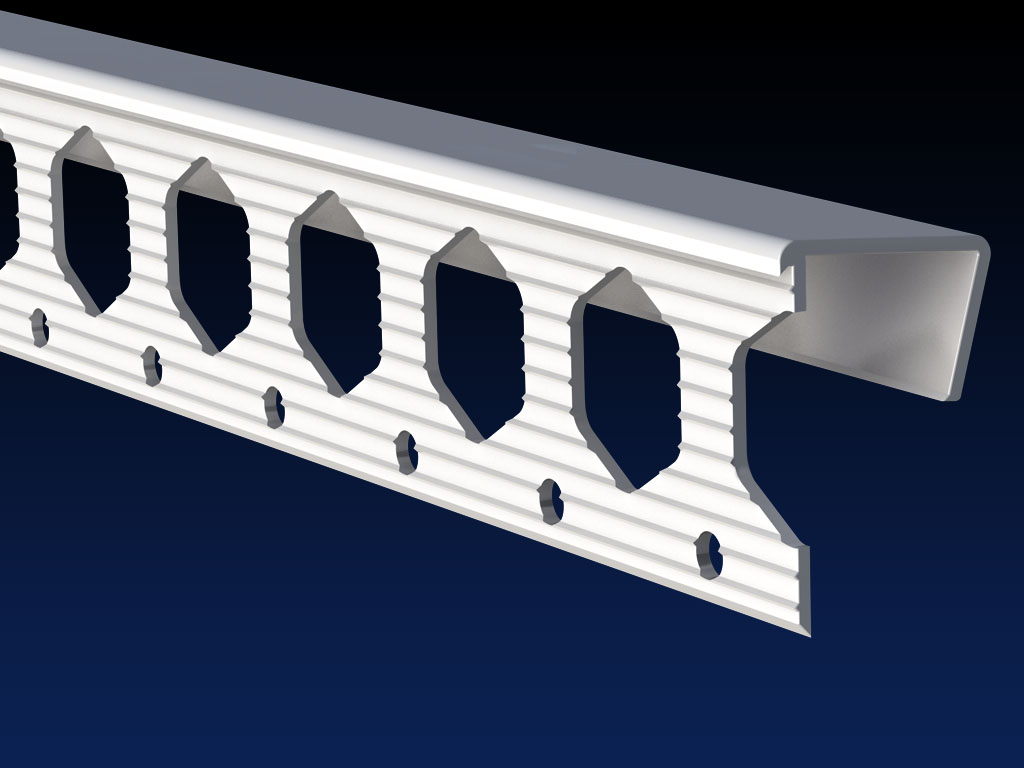

EB12 12.5mm PVCu clip-on edge bead 2 3.88 25 White View»

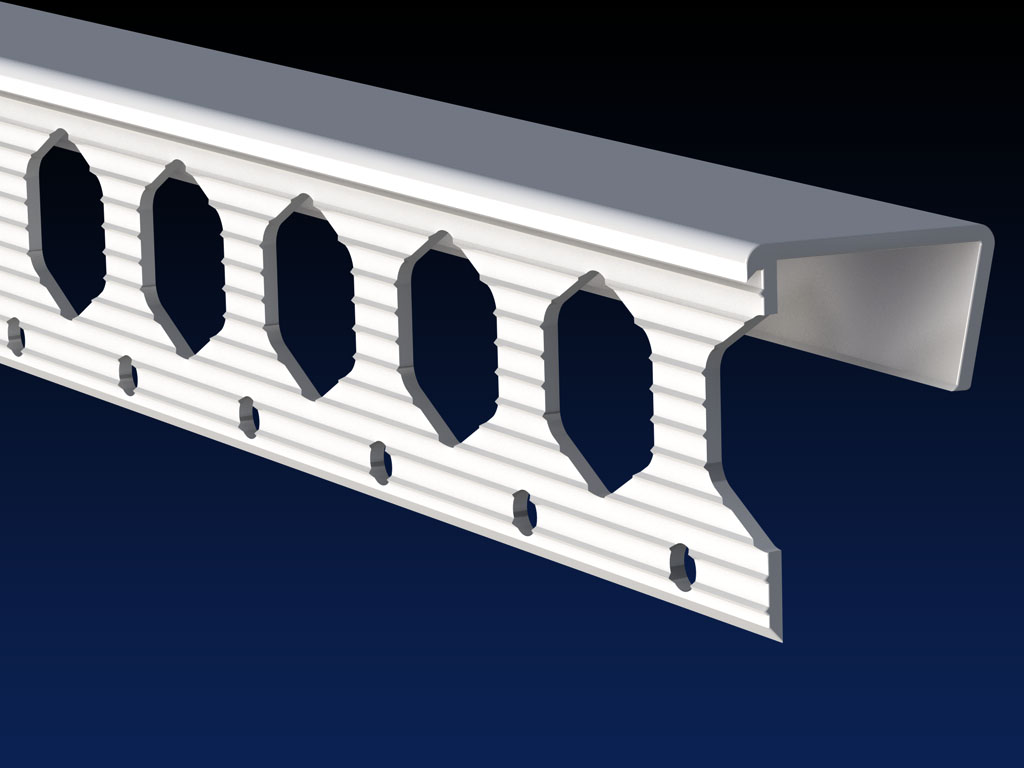

EB15 15mm PVCu clip-on edge bead 2 4.56 25 White View»

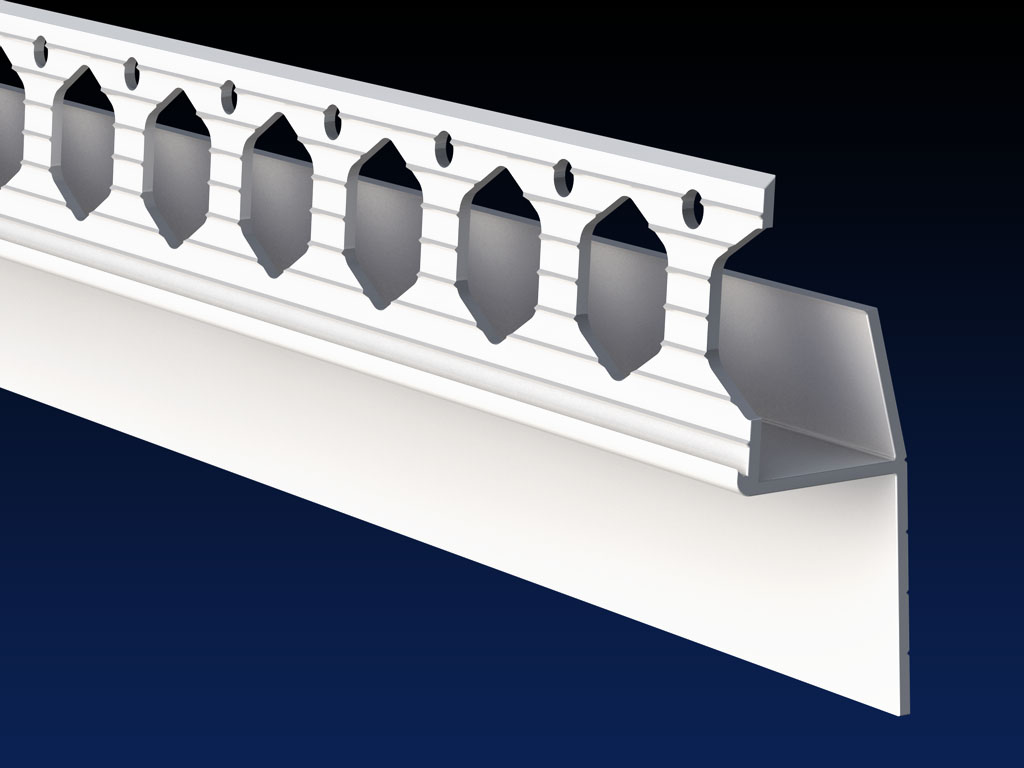

SGL20-6 PVCu shadow gap 2 2.75 6 White View»

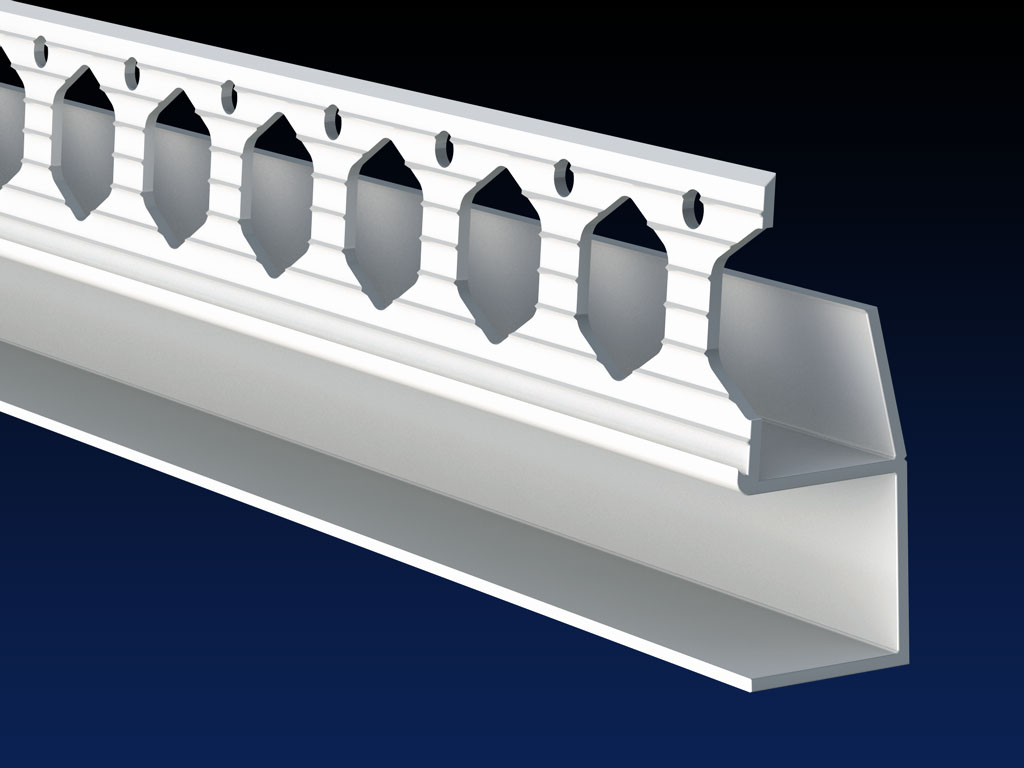

SGU15-6 PVCu shadow gap 2 3.00 6 White View»
